Classes

• Undirected Graph: Graph class
• Directed Graph: Digraph class
• Weighted Directed Graph: EdgeWeightedDigraph

Undirected Graph Algorithms

• DepthFirstSearch: Given a source vertex, to what vertices is connected
• DepthFirstPaths: Find a path from a source vertex.
• BreadthFirstPaths: Find the shortest path from a source vertex.
• Cycle: Determine if the graph has a cycle.

Digraph Algorithms

• DepthFirstOrder: Compute preorder, postorder, and reverse postorder of vertices.
• Topological: Compute a topological order of vertices in a DAG (Directed Acyclic Graph)
• DijkstraSP: Shortest Paths from a source vertex in a weighted digraph (non-negative weights)
• DirectedCycle: Does a digraph have a directed cycle?
• AcyclicSP: Shortest Paths from a source vertex in an acyclic weighted digraph (negative weights allowed, but no cycles)
• CPM: Critical Path Method - Schedule tasks given duration of each task and what tasks must finish before each task begins.

Assumptions

A necessary and sufficient condition for shortest path from a source vertex s to all reachable vertices w in a digraph applies to the array distTo no matter how it is calculated, provided it has these properties:

 distTo[v] = length of some path from s to v, or
 distTo[v] = Infinity if there is no directed path from s to v


A necessary and sufficient condition for distTo[u] to be the shortest distance from s to u for every vertex u is

For every vertex v and every edge e

 distTo[w] <= distTo[v] + e.weight()   (where v = e.from() and w = e.to())


The optimality condition is necessary for distTo[u] to be the minimal length of paths from s to u.

If

      distTo[w] > distTo[v] + e.weight() for some v, w, and edge
      v-> w


The path from s to v followed by the edge from v to w would have total length

      distTo[v] + e.weight()


And so dist[w] would not be a minimal length for a path from s to w.

Suppose e is an edge from v to a vertex w.

distTo[v] is the length of some path from s to v

distTo[w] is the length of some path from s to w

We may be able to relax (i.e., decrease distTo[w]) by considering a different path from s to w:

      s to v, followed by the edge from v to w.


whose length is

      distTo[v] + e.weight()    // where e is the edge from v to w


 void relax(DirectedEdge e)
 {
   int v = e.from();
   int w = e.to();

   if (distTo[w] > distTo[v] + e.weight()) {
      distTo[w] = distTo[v] + e.weight();
      edgeTo[w] = v;
   }
 }


Shortest Path from a single source vertex in a weighted digraph with no negative weights

For the graph algorithm to solve this problem, we needed to pick a vertex of minimum distance to the source from the vertices that are connected by an edge to "known" vertices.

The distTo[v] array will keep track of the best distance so far from the source to vertex v.

But this distance might decrease by using a path through a vertex chosen later!

What data structure? We want to know what vertex to add next to the ones with known shortest distance.

A minPriorityQueue seems a possibly good choice with (vertex, distance) pairs, where the distance is the priority.

But there is a problem. How do we update the distance for some vertex that is already in the priority queue.

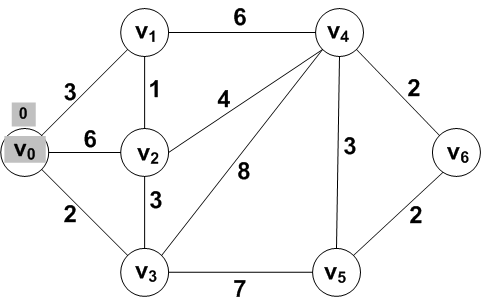

Example in class

Shortest directed paths from a source vertex s.

public DijkstraSP(EdgeWeightedDigraph G, int s) {
    distTo = new double[G.V()];
    edgeTo = new DirectedEdge[G.V()];
    for (int v = 0; v < G.V(); v++) {
       distTo[v] = Double.POSITIVE_INFINITY;
    }
    distTo[s] = 0.0;

    // relax vertices in order of distance from s
    pq = new IndexMinPQ<Double>(G.V());
    pq.insert(s, distTo[s]);
    while (!pq.isEmpty()) {
       int v = pq.delMin();
       for (DirectedEdge e : G.adj(v))
          relax(e);
       }
    }
}

private void relax(DirectedEdge e) {
  int v = e.from(), w = e.to();
  if (distTo[w] > distTo[v] + e.weight()) {
    distTo[w] = distTo[v] + e.weight();
    edgeTo[w] = e;
    if (pq.contains(w)) {
      pq.change(w, distTo[w]);
    } else {
      pq.insert(w, distTo[w]);
    }
  }
}

Find the shortest path in an edge weighted DAG (no cycles), but allow negative weights.

public AcyclicSP(EdgeWeightedDigraph G, int s) {
  distTo = new double[G.V()];
  edgeTo = new DirectedEdge[G.V()];
  for (int v = 0; v < G.V(); v++)
    distTo[v] = Double.POSITIVE_INFINITY;
  distTo[s] = 0.0;

  // visit vertices in toplogical order
  Topological topological = new Topological(G);
  for (int v : topological.order()) {
    for (DirectedEdge e : G.adj(v))
      relax(e);
  }
}

How do you find longest paths from a source vertex in an edge weighted graph?

DijkstraSP doesn't help.

AcyclicSP does with a simple observation.

Switch to a copy of the graph, but with all the edge weights negated.

Find the shortest path in the copy.

The same sequence of vertices will be a longest path in the original graph!

AcyclicSP - finds shortest paths

AcyclicLP - finds longest paths

int source = 2*N;
int sink   = 2*N + 1;

// build network
EdgeWeightedDigraph G = new EdgeWeightedDigraph(2*N + 2);
for (int i = 0; i < N; i++) {
  double duration = StdIn.readDouble();
  G.addEdge(new DirectedEdge(source, i, 0.0));
  G.addEdge(new DirectedEdge(i+N, sink, 0.0));
  G.addEdge(new DirectedEdge(i, i+N,    duration));

  // precedence constraints
  int M = StdIn.readInt();
  for (int j = 0; j < M; j++) {
    int precedent = StdIn.readInt();
    G.addEdge(new DirectedEdge(N+i, precedent, 0.0));
  }
}

// compute longest path
AcyclicLP lp = new AcyclicLP(G, source);

// print results
System.out.println(" job   start  finish");
System.out.println("--------------------");
for (int i = 0; i < N; i++) {
  System.out.printf("%4d %7.1f %7.1f\n", i, lp.distTo(i), lp.distTo(i+N));
}
