SE 450 Fall 2001/2002

Week 8 Lecture Notes

• Two types:
  • Stream I/O - sequential reading or writing of data using byte or character streams.
  • Random Access I/O - random access I/O supporting reading and writing on the same file.

• A stream is an ordered sequence of data (bytes) (serial channel of communication)
  • with either a source (input stream)
  • or a destination (output stream)
• 2 main classes: InputStream and OutputStream (both abstract)
  • InputStream Method: read a byte, or an array of bytes
  • OutputStream Method: write a byte, or an array of bytes
  • hard to use and not very useful because you have to convert from byte to what you are interested in.
• File streams are the lowest classes in the hierarchy that can be instantiated.
  • FileInputStream - read from a file
  • FileOutputStream - write to a file
  • Used to connect streams to files.
  • Constructor may throw FileNotFoundException
• Example - Reading and writing matrices from/to a file.
• Filter streams place a layer between the real input or output stream and the user (see FilterInputStream or FilterOutputStream)
  • Note the constructor. It takes an input/output stream as a parameter.
  • Two useful subclasses which allow you to read/write Java primitives through the use of the decorator pattern.
    • DataInputStream implements DataInput
    • DataOutputStream implements DataOutput
• Example - Reading and writing matrices from/to a file made a little bit easier.
• Buffered streams allow an application to read (write) bytes from (to) a stream without necessarily causing a call to the underlying system for each byte read (write)
  • Buffered classes contain no additional methods
• System.in is a BufferedInputStream
• System.out is a PrintStream, a kind of FilterOutputStream
  • PrintStream methods: print, println (both are overloaded)
• Example - Reading and writing matrices from/to a file using buffering.
• Important that you call close() method when you are done to free up system resources.

• Unicode is a 16-bit (2 byte) encoding of characters.
• Unicode characters and byte streams do not mix.
• Solution: Reader and Writer classes (abstract)
• Filter and Buffered Readers and Writers
• String i/o: BufferedReader and PrintWriter
• Connecting Readers and Writers to Files: FileReader and FileWriter
  • Constructor is passed a file name
• Example: creating a BufferedReader that is connected to a file: BufferedReader b; try { b = new BufferedReader(new FileReader("data.txt")); } catch (FileNotFoundException file_ex) { System.out.prinln(file_ex.getMessage()); return; } String s = b.readLine(); ...
• Example - Reading and writing matrices from/to a file using a character stream.

• InputStreamReader and OutputStreamReader convert from byte to character streams using encoding (UTF-8, GB2312[Chinese])
• Use these when you have an InputStream or OutputStream that you need to connect to a Reader or Writer.

• Used to "add on" functionality in a layered fashion that can be mixed and matched.
• Eliminates the need to implement all of the different combinations of possible I/O streams.
• Allows future additions of functionality without rewriting old code.
• Examples:
  • Encryption streams, compressed streams.

• Single sequential flow of control within a program.
• Multi-threaded (a.k.a. concurrent) programs have many threads running simultaneously.
• A multi-threaded program can run on a single-processor or multi-processor computer.
• Java provides language support for multi-threading.
• The Java runtime environment is multi-threaded.

• Most conventional programming languages are single-threaded.
• Advantages of multi-threading:
  • reactive systems: control systems
  • responsiveness: GUI
  • availability: servers
• Disadvantages of multi-threading:
  • shared access to objects
  • overhead: thread creation, context switching and synchronization
  • race hazard can produce unpredictable results

• Approach A:
  • Subclass the Thread class.
  • Override run() method.
  • Create new thread with new MyThread()...
  • Call start() method of the new thread
• Approach B:
  • Implement Runnable interface
  • Implement run() method
  • Create a new thread using new Thread(runnable)
  • Call start() method on the newly created thread

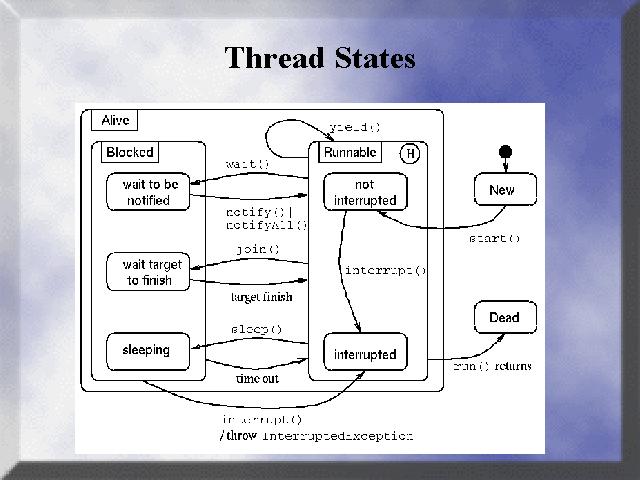

• Thread States
  • New - thread has been created but has not had run() method called
  • Runnable - thread can be run by operating system
  • Blocked - thread can not be run by operating system
• Methods used to control state
  • start() - move thread to runnable state
  • sleep() - tell thread to go to sleep for a specified time
  • join() - tell thread to wait for another thread to finish
  • yield() - give up the processor so some other thread can run
  • interrupt() - tell this thread that you want it to stop
  • isAlive() - see if a thread is alive
  • isInterrupted() - see if a thread is interrupted
• There are other methods (stop(), suspend(), resume()) that have been deprecated in JDK 1.2 because they can cause unpredictable results. They should not be used!!

• Java virtual machine implements a very simple scheduling strategy.
• Each thread has a priority between MIN_PRIORITY and MAX_PRIORITY.
• A live thread may be runnable or blocked.
• The runnable thread of the highest priority will be selected to run.
• If there are more than one runnable threads of the same highest priority, one will be selected arbitrarily. These is no requirement of fairness.
• A thread of a higher priority will preempt a thread of a lower priority.
• A thread that is currently running will relinquish the control whenone of the following happens:
  • It yields, i.e., yield() is invoked.
  • It becomes blocked.
  • A thread with a higher priority becomes runnable.
  • Its time-slice has expired.

• Saftey means that certian conditions should hold throughout the lifetime of a program (aka invariants).
• Liveness means that there is always some useful work being done throughout the life of the program.
• As safety goes up, liveness goes down as well as the other way around.
• Multi-threaded programming forces us to balance the two factors.

• What happens if a thread is interrupted in the middleofdoing somethingtoan object??
• The object could end up in an inconsistent state.
• Example: a bank account public class Account { //... public boolean withdraw(long amount) { if (amount <= balance) { long newbalance = balance - amount; balance = newbalance; return true; } else return false; } private long balance; }
• Can you find a path of execution that could cause a problem?? How about 2 withdrawals that are done at almost the same time on 2 different threads.
• How do we solve this?? Exclusion!!!
• Exclusion (thread safety) assures us that at most one thread will be executing the "critical section" of a method at one time.
• These methods are called "atomic operations".
• A safer version of the bank account using exclusion. public class Account { // ... public synchronized boolean withdraw(long amount) { if (amount <= balance) { long newbalance = balance - amount; balance = newbalance; return true; } else return false; } private long balance; } or public class Account { // ... private Object lock = new Object(); public boolean withdraw(long amount) { synchronized(lock){ if (amount <= balance) { long newbalance = balance - amount; balance = newbalance; return true; } else return false; } } private long balance; }
• The synchronized keyword locks on the current (ie this) object and prevents more than one thread from acting on the object.
• Locks can be shared by many methods public class A{ synchronized void m1(){...} synchronized void m2(){...} void m3(){...}
• Only one thread can be executing either m1 or m2 on any instance of A but any number of thread can be executing m3.
• Another way of using locks: public class Account { // ... public boolean withdraw(long amount) { synchronized (this) { if (amount <= balance) { long newbalance = balance - amount; balance = newbalance; return true; } else return false; } } }
• Examples: Bounded queue and safe bounded queue

• Synchronization only deals with exclusion of threads not cooperation between threads.
• What's wrong with the thread safe queue above?? Possible loss of information.
• Threads can cooperate using the wait()/notify() mechanism of the Object class.
• Change bounded queue in the following ways:
  • if queue is full, producer waits until it can put something new into the queue.
  • if queue is empty, consumer waits until there is something in the queue.
• How do we accomplish this?? Guarded suspension!!!
  • Before method is executed, check the guard.
  • If guard is true, continue execution.
  • If guard is false, wait until it is true.
• Example - Guarded Bounded Queue

• Livelock - when one or more threads get starved for CPU time.
• Deadlock - when all thread stop working because they are waiting on each other
• Famous deadlock problem - The dining philosophers.
  • 4 philosophers sitting around a table
  • 1 fork in between each one
  • You need two forks to eat
• Deadlock solutions:
  • Resource ordering - make sure they grab the forks in a certain order
  • Tokens - use one less token than philosophers and force each philosopher to get a token before grabbing forks.
