Inheritance
allows a software developer to derive a new class from an existing one.
All Java Objects automatically inherit methods
from Object
All objects have Object as a superclass.
|
Object Methods |
Action |
|
equals() |
returns |
|
finalize() |
Called by
the garbage collector on an object when garbage collection determines that
there are no more references to the object. |
|
getClass() |
Returns
the runtime class of an object |
|
hashCode() |
Returns a
hash code value for the object |
|
notify() |
Wakes up a
single thread that is waiting on this object |
|
notifyAll() |
Wakes up
all threads that are waiting on this object |
|
toString() |
Returns a
string representation of the object. |
|
wait() |
Causes
current thread to wait until another thread invokes the |
|
wait(long timeout) |
Causes
current thread to wait until either another thread invokes the |
Example: Object used in a program
public class ObjectTest
{
public static void
main (String [] args)
{
Object obj1, obj2;
obj1 = new Object();
obj2 = new Object();
if (obj1.equals(obj2))
System.out.println("
obj1 equals obj2 ");
else
System.out.println("
obj1 not equal to obj2 "); // not equal
System.out.println(obj1); //
java.lang.Object@feea60f7
System.out.println(obj2); // java.lang.Object@feea6100
System.out.println(obj1.getClass()); // class java.lang.Object
String str1 = new String("CSC212");
String str2 = new String("CSC212");
if (str1.equals(str2))
System.out.println("
str1 equals str2 "); // equals
else
System.out.println("str1
not equal to str2 ");
System.out.println(str1); // CSC212
System.out.println(str2); // CSC212
System.out.println(str1.getClass()); // class java.lang.String
}
}

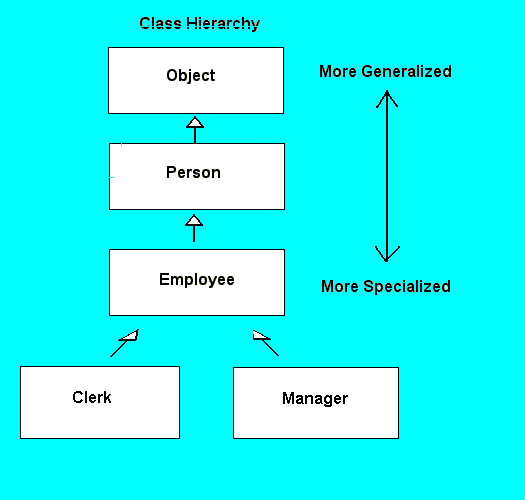

Inheritance Class Hierarchies
Inherited attributes and methods are passed down from parent to child.
A class can only have one parent.
A parent can have one or more children.
When a child becomes a parent, its children will receive all the capabilities
of the parent
and the parent’s parents.
This chain continues until the root Object.
The parent class has properties common to all subclasses.
The child inherits everything from the parent
The child can have additional methods and attributes to handle more specialized situations.
During the execution of a program, the child can be used in place of the parent (substitutability rule).
The parent cannot substitute for the child.
Superclass (a.k.a. base
class, parent class)
The Person class below can be used as a superclass
public class Person
{
private String
name, address;
private static int count = 0;
private int privateID;
protected int protectedID;
public Person(String aName,
String anAddress) // constructor
{
name = aName;
address = anAddress;
count++;
privateID
= protectedID = count;
}
public void nameAndAddress()
{
System.out.println(name + " " + address);
}
public int getPrivateID() {return privateID;}
public int getProtectedID() {return protectedID;}
public static int getCount() {return count;}
}
Subclass (a.k.a. derived class,
extended class, child class)
The subclass gets all the capabilities of the superclass
by using the extends keyword
Creating a subclass
public class Employee
extends Person {}
·
Employee can do
everything a Person can do.
·
Employee can also do
everything an Object can do.
Subclasses and the use of extends and super keywords
public class Employee
extends Person
{
private static int count = 0; // count “hides” count of Person
private String
occupation;
private int ID;
public Employee(String aName,
String anAddress, String occupation)
{
super(aName, anAddress);
this.occupation
= occupation;
ID = ++count;
}
public void job()
{System.out.println(occupation); }
public int getID() {return ID; }
public static int getCount() {return count;}
}
super reference to a
constructor
Constructors
are NEVER inherited, and they have no return type.
When a subclass is created, the constructor of the class extended is called first.
When the superclass constructor requires parameters, use a super reference for the
constructor.
Usage of
Employee and Person classes
public class TestPerson
{
public static void
main(String [] args) {
Person aPerson
= new Person("John", "
aPerson.nameAndAddress(); // John Chicago
System.out.println(aPerson.getPrivateID());
// 1
System.out.println(aPerson.getProtectedID());//
1
// Person has all the capabilities of
an Object
System.out.println(aPerson); //
Person@ff14a83f
System.out.println(aPerson.getClass());// class Person
Employee anEmployee
= new Employee("Jim","
//
Employee has all the capabilities of person and Object
anEmployee.nameAndAddress(); // Jim Skokie
System.out.println(anEmployee.getPrivateID()); // 2
System.out.println(anEmployee.getProtectedID());// 2
System.out.println(anEmployee); //
Employee@ff14bc9b
System.out.println(anEmployee.getClass()); // class Employee
if (aPerson.equals(anEmployee)) // NOT the
same
System.out.println("
the same");
else
System.out.println("
NOT the same");
//
employee also has its own methods
anEmployee.job(); //
Programmer
// Employee class has a static method.
System.out.println(anEmployee.getCount()); // 1
// Person class has a static method.
System.out.println(aPerson.getCount()); // 2
}
}
Override
occurs when a class
redefines a method that was implemented in a parent class.
Override those inherited methods that do not work the way
they should.
Implement a method with the same signature as the parent.
Notes: The access modifier can be kept the same or strengthened (but not weakened)
The return type does not have to be the same as the method overridden.
Override example and use of super:
public class Person
{
private String
name, address;
public Person()
{ // constructor
name =
"John";
address =
"
}
public String nameAndAddress() {
return (name +
" " + address);
}
}
public class Employee extends Person
{
private String
occupation;
public
Employee(String occupation)
{
this.occupation
= occupation;
}
public String nameAndAddress()
{
String result = super.nameAndAddress();
// super is an invocation of parent method
result += occupation;
return result;
}
}
public class TestPerson
{
public static void
main(String [] args)
{
Person x = new Person();
Employee y = new Employee("
Programmer");
x.nameAndAddress(); // John Chicago
y.nameAndAddress(); // John Chicago Programmer
// invokes overridden method in Employee
// not the method in Person
}
}
Frequently overridden methods of Object
equals() Modified
to return true if both references refer to the same type of object
and the objects have selected content which is identical
The
equals() method is called by Java methods which search
for identical objects.
toString() Modified
to return content from the selected object
The
toString()
method is invoked by (System.out.println(Object));.
Substitution principle -- An object of a subclass can be used wherever the parent is used.
public class
TestPerson2
{
public
static void main(String [] args)
{
Employee emp1 = new Employee("Jack","
Employee emp2 = new Employee("Casey", "Oak Brook",
"Systems Analyst");
Person per1 = new Person("Pete","Schaumberg" );
Person per2 = new Person("Mark",
"
// a form of
polymorphism -- subclass can be used where its superclass
is used
per1 = emp1; // will compile substitute child for parent
// the parent cannot subsitute for the more specialized child
emp2 = per2; // will not compile -- incompatible
types
}
}
Subclasses do not have automatic access to all data inherited from the superclass
public class Employee
extends Person {
. . .
. . .
public void increaseProtectedID ()
{
protectedID++; // allowed protected modifier in Person
}
public void increasePrivateID ()
{
privateID++; // not allowed private modifier in Person
}
}
Visibility Modifiers
|
Visibility Modifiers (least to most restrictive) |
Accessible by |
|
public |
any other class |
|
protected |
any subclass or any class in the same package |
|
no modifier |
any class within the same package |
|
private |
only by the owning class |
In order for the
subclass to access the attributes of the parent, visibility should be
protected.
Visibility
modifier of an override can be broadened but not weakened.
public class SuperClass
{
protected int x = 1;
protected int y = 2;
protected int getX(){return x;}
protected int getY(){return y;}
}
class SubClass
extends SuperClass
{
public int getX(){return x + 10;} // will compile (broaden access)
private int getY(){return y + 10;} // will not compile (weakened access)
}
Additional Modifiers that affect Inheritance
Modifer
|
Result |
|
final |
no subclasses can be created |
|
abstract |
No object of this class can be created Subclasses must implement code |
Final Classes
If
a class defines itself as final, then no other class can extend it.
public final class Manager extends Employee
{
double salary;
}
public class BossOfBosses extends Manager // will not compile
{
public BossOfBosses() // cannot inherit from final
}
}
Abstract Classes
Abstract classes contain one or more methods without an implemented
procedure (abstract method)
When
the abstract class is used for inheritance, the abstract methods act as “place
holders” for concepts that should be implemented.
public class Person
{
private String
name, address;
public
Person(String aName, String anAddress)
{ // constructor
name = aName;
address = anAddress;
}
public String getName() {return name;}
public String getAddress() {return address;}
}
public abstract class Employee extends
Person // abstract class
{
private String occupation;
public Employee (String name, String address,
String occupation)
{
super(name,
address); // super keyword invokes
parent constructor
this.occupation = occupation;
}
public abstract double pay(); // abstract method
}
Although abstract classes cannot be instantiated they
can be inherited by the “extends” keyword.
The inheriting class can then override the abstract method with code appropriate to the class.
public class Clerk extends Employee
{
double hourlyRate;
int hours;
public Clerk (String name, String address,
String employeeType,
double hourlyRate,
int hours)
{
super (name, address, employeeType);
this.hourlyRate = hourlyRate;
this.hours = hours;
}
public double pay() // must implement abstract methods
{
double result = hourlyRate
* hours;
if (hours > 40)
result +=
(hours - 40) * hourlyRate * .5;
return result;
};
}
If the inheriting class does not define all its methods, then it also is an abstract class
The override for Manager pay will be different from that of the clerk
public class Manager extends Employee
{
double
salary;
public
Manager (String name,String address,
String employeeType, double salary)
{
super (name, address, employeeType);
this.salary
= salary;
}
public
double pay() // must implement the
abstract method
{
return
salary;
};
}
The clerk and the
manager each have a pay() method with a different
implementation
import java.text.*;
public class TestEmployee
{
public static void main(String [] args)
{
NumberFormat currency = NumberFormat.getCurrencyInstance();
Clerk clerk = new Clerk("Pete", "Burbank","Payroll
Clerk", 8.50,40);
System.out.println("This week the Payroll clerk gets paid "
+ currency.format(clerk.pay()));
Manager manager = new Manager("Tim", "WestWorld","PayRoll
Manager", 4000.00);
System.out.println("This month the Payroll Manager gets "
+ currency.format(manager.pay()));
}
}
/*
prints
This week the Payroll clerk gets paid $340.00
This month the Payroll Manager gets $4,000.00
*/
Dynamic Binding -- Super
reference searches parentage for most recent version of the called method
public class SuperClass
{
private int x = 3;
private int y = 2;
private int z = 1;
protected int getX(){return x;}
protected int getY(){return y;}
protected int getZ(){return z;}
}
public class SubClass extends SuperClass
{
public int getX(){return super.getX()
+ 30;} // to SuperClass
public int getY(){return super.getY()
+ 20;} // to SuperClass
}
public class SubSubClass extends SubClass
{
public int getX(){return super.getX()
+ 300;} // to SubClass
}
public class TestSuperClass
{
public static void
main(String [] args)
{
SubSubClass ssc = new SubSubClass();
System.out.println(ssc.getZ()); // 1
System.out.println(ssc.getY()); // 22
System.out.println(ssc.getX()); // 333
}
}
Polymorphism --
the characteristic of assigning different meaning or usage to something in different contexts – specifically, to allow an entity such as a variable, a function or an object to have more than one form.
Within Java, polymorphism is made possible by
1. Overriding inherited methods.
2. Implementing empty methods of interfaces.
Interface
interface Talk
{
void speak();
void echo(String s);
final static String HI = "Hello
";
}
· An interface defines a list of methods but does not implement them.
·
The methods have names, parameters and return
type but no procedural code.
· A class that implements an interface must implement all the methods defined in the interface.
· An interface can be implemented by any class anywhere in the class hierarchy.
· An interface can also declare constants (static and final).
· All methods and constants are public
·
An interface may
extend an interface.
Differences between Interface and abstract class
- An interface cannot implement any methods, but an abstract class can.
- An interface is not part of the class hierarchy. Unrelated classes can implement the same interface.
- A class can implement more than one interface
- A class can have only one superclass (there is no multiple inheritance).
Example of a class that Implements an Interface
public class Person implements Talk
{
protected String
name;
protected String
address;
public Person(String name, String address)
{
this.name =
name;
this.address
= address;
}
public
void printName( ) {System.out.println(name);}
public
void printAddress( ) {System.out.println(address);}
// when implementing an
interface, be sure to define all the
// methods in the
interface
public
void speak() {System.out.println(HI + "I'm a
Manager ");}
public
void echo(String s) {System.out.println(s);}
}
Any class can use the interface
public class Dog implements Talk
{
private String says = new String("Bow
wow");
public String toString()
{
return new String("I am a dog");
}
public void speak ()
{
System.out.println(says);
}
public void echo(String s)
{
System.out.println(says + " " + s);
}
public void bestFood()
{
System.out.println("Alpo");
}
}
An interface
name can be used as an object reference variable
A reference can point to any object of any class that implements the interface
Casting can be used to reference specific methods of the containing class
public class Speakers
{
public void instanceTest (Talk obj)
{
if (obj instanceof Dog) {
Dog dog =
(Dog) obj;
dog.bestFood();
}
else if (obj instanceof Person)
((Person) obj).printName();
}
public static void
main(String [] args)
{
Speakers s1 = new Speakers();
Person p = new Person("Jim",
"Lincolnwood");
p.speak(); // Hello I'm a
Manager
p.echo("Time to eat"); // Time to eat
Dog d = new Dog();
d.speak(); // Bow wow
d.echo("cats");
// Bow wow cats
s1.instanceTest(p); // Jim
s1.instanceTest(d);
// Alpo
}
}
Multiple Inheritance – not allowed but Multiple interfaces are
A Java class can only extend one class (single inheritance) but it can implement multiple interfaces
interface Opinion
{
void giveOpinion();
}
The multiple
interfaces are a comma-separated list following the implements keyword
public class Person implements Talk, Opinion
{
protected String
name;
protected String
address;
public
Person(String name, String address)
{
this.name = name;
this.address
= address;
}
public
String getName( ) { return name;}
public
void speak() {System.out.println(HI + "I'm a
Manager ");}
public
void echo(String s) {System.out.println(s);}
public
void giveOpinion() { System.out.println("Thumbs up!");}
}
Interfaces can also
inherit
interface Opinion extends
Talk
{
void giveOpinion();
}
public class Person implements Opinion
{
protected String
name;
protected String
address;
public
Person(String name, String address)
{
this.name =
name;
this.address
= address;
}
public
String getName( ) { return name;}
public
void speak() {System.out.println(HI + "I'm a
Manager ");}
public
void echo(String s) {System.out.println(s);}
public
void giveOpinion() { System.out.println("Thumbs up!");}
}
The Comparable interface
interface Comparable
{
int compareTo(Object other);
}
The Comparable interface is
- part of the Java System – you don’t
have to define one of your own.
- called by sort routines when
comparing objects.
The
compareTo method must be able to compare two objects
and
return an indicator
specifying which one is larger.
x.compareTo(y);
x returns a negative number if smaller than y
x returns a positive number if greater than y
x return a zero if it is equal to y
Since the
value the of the number does not matter, it is possible to compare employees by
employee ID
public int compareTo(Object otherObject) {
Employee other = (Employee) otherObject;
return (ID – other.ID);
}
The
comparison could be on any fields that can be ordered – height, salary, age,
etc.
