WLAN access point - the D-Link DWL-900AP

Access Point, Wireless

Definition: Wireless access points (APs or WAPs) are specially configured nodes on wireless local area networks (WLANs). Access points act as a central transmitter and receiver of WLAN radio signals.

Access points used in home or small business networks are generally small, dedicated hardware devices featuring a built-in network adapter, antenna, and radio transmitter. Access points support Wi-Fi wireless communication standards.

Although very small WLANs can function without access points in so-called "ad hoc" or peer-to-peer mode, access points support "infrastructure" mode. This mode bridges WLANs with a wired Ethernet LAN4 and also scales the network to support more clients. Older and base model access points allowed a maximum of only 10 or 20 clients; many newer access points support up to 255 clients. By connecting access points to each other, local networks having thousands of access points can be created. Client computers may move or "roam" between each of these access points as needed.

In home networking, wireless access points can be used to extend an existing home network based on a wired broadband router. The access point connects to the broadband router, allowing wireless clients to join the home network without needing to rewire or re-configure the Ethernet connections.

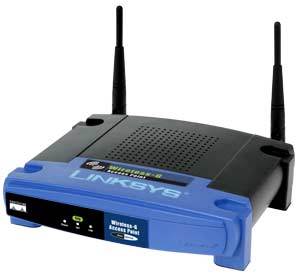

As illustrated by the Linksys WAP54G, wireless access points appear physically similar to wireless routers. Wireless routers actually contain a wireless access point as part of their overall package. Like wireless routers, access points are available with support for 802.11a, 802.11b, 802.11g or combinations.
